QUAD

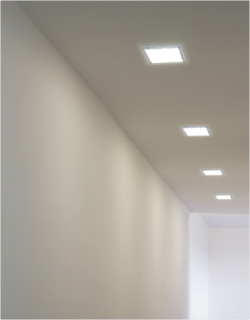

Downlights for compact fluorescent lamps with high lumen output and exact glare control. The luminaire ranges are available in four frame sizes each with up to three different recess depths. This enables the same visual appearance to be achieved for different ceiling installation scenarios. To accommodate various design wishes, three different luminaire covers are available for recessed downlights.


 PDF 2,3 MB QUAD

Standard one-piece, narrow, luminaire cover frame. The reflector edge sits in a slight recess and finishes flush with the surface.

Overlapping reflector, concealed luminaire cover frame. It is covered by the reflector edge and is therefore no longer visible.

2-part interchangeable frame system. The luminaire is supplied with a fixed frame. A separate cover frame is secured with a spring clip. Suitable for retro-fitting photo-optic accessories.


Cast-in housings for concrete
The use of concrete fittings makes it possible to integrate recessed luminaires harmoniously into ceilings even when they are not suspended ceilings. Custom adaptations also enable special static specifications to be satisfied. This includes lengthened inlet ports in the concrete.
